Our embedded devices bring sensor and actuator interfaces into your processes via the network and are supplied in a robust industrial housing. The performance is scalable over a wide range and extends from simple remote I/O devices to powerful Linux-based systems.

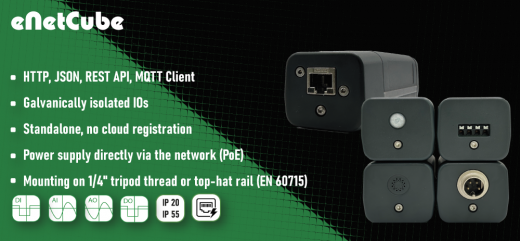

eNetCube

Your versatile solution for control systems. Perfect for outdoor use, the eNetCube enables the connection of various sensors and actuators for industrial and private applications.

+

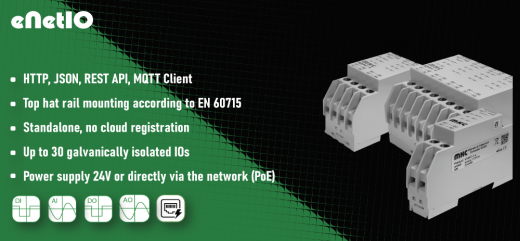

eNetIO

The ideal solution for various process I/O requirements. The device is perfectly suited for indoor use thanks to its mounting option on a top-hat rail.

+

eNetMini

eNetMini devices are designed as single-board computers and can be used straight away. The housings are optionally available or can be printed yourself

+

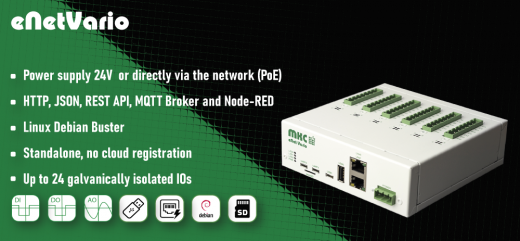

eNetVario

A powerful Linux system with pre-installed applications (Mosquitto MQTT-Broker and Node-RED) make this device the ideal control unit for your application.

+

In order to meet the high requirements in the industrial environment, all devices are operated without a fan. The I/Os provided (analog, digital, interfaces) are galvanically isolated from each other and from the device, and can be used directly in the process.

The basic functions of all devices are based on the embedded modules eNetMini and eNetMaxi and support data communication via TCP, UDP and the HTTP network protocol.

The power supply can be provided directly via the network cable in accordance with the IEEE802.3af standard (Power over Ethernet, PoE). A conventional power supply is not required, but can be used as an alternative. A power line variant is being prepared to enable power supply and data communication via the house installation (240V AC) available in every building.
